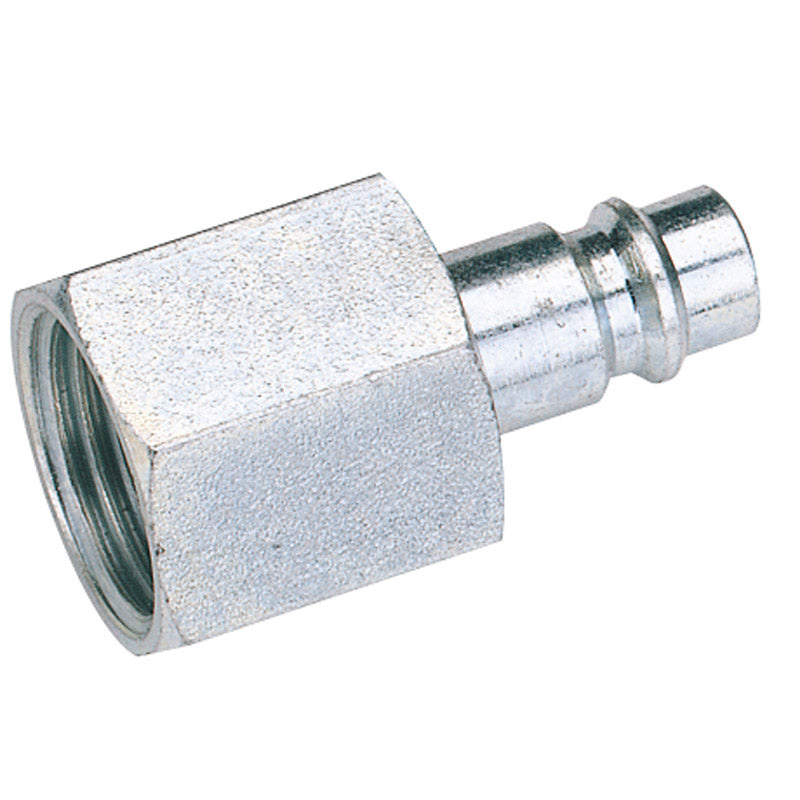

Draper 1/2" BSP Female Nut PCL Euro Coupling Adaptor (Sold Loose)

•   For heavy duty high flow applications
•   Tested to over 1 million cycles
•   Connects to most popular and European adaptor profiles (Cejn, Rectus etc.)
•   Zinc passivated to significantly improve corrosion resistance
•   Hard wearing steel construction
Sold loose.

Flow capacity at 6 bar inlet and
0.5bar pressure drop      78cfm (2200L/min)
Max. working pressure      500psi (35bar)
Test pressure      725psi (50bar)
Max. burst pressure      2030psi (140bar)
Temp. range      -40 to 100°C
Nominal flow diameter      7.4mm
